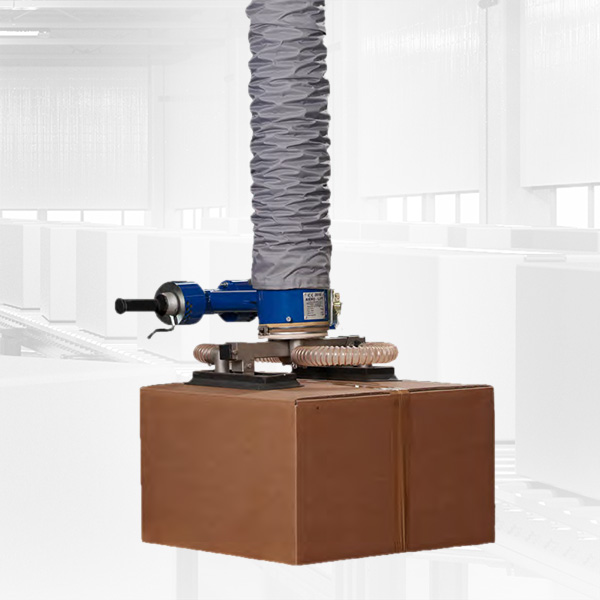

Vacuum Tube Lifter
The Vacuum Tube Lifter is a flexible vacuum lifter with a maximum load capacity of 300 kg. Support of lifting process with the use of vacuum, allows the operator to handle large-size and heavy loads in a very easy manner. The applied safety devices protect the load against uncontrolled fall in the event of a power failure. A wide selection of grippers, a special design made of stainless steel and the use of additional options, such as soundproof covers or remote power control, allow the handling system to be applied in any kind of industry.
Please visit the Gallery tab to see some examples of applications Vacuum Tube Lifter.
SPECIFICATION
Gallery
Files to download
Specification
| TECHNICAL CHARACTERISTICS | ||||
| Typ | MINI-LIFT 30 | FLEX-LIFT 35 | MULTI-LIFT 50 | |
| Work load[kg] | 30 | 35 | 50 | |
| Lift height [mm] | 1700 | 1700 | 1700 | |
| Lift speed [m/min] | 0 - 50 | 0 - 50 | 0 - 50 | |
| Lift tube diameter [mm] | 120 | 120 | 120 | |
| Vacuum generator | Blower 3Kw 400V/50hZ | |||
| Typ | MAXI-LIFT 75 | MAXI-LIFT 100 | MAXI-LIFT 200 | MAXI-LIFT 300 |
| Work load[kg] | 75 | 100 | 200 | 300 |
| Lift height [mm] | 1700 | 1625 | 1520 | 600 |
| Lift speed [m/min] | 0 - 50 | 0 - 30 | 0 - 30 | 0 - 30 |
| Lift tube diameter [mm] | 175 | 200 | 250 | 300 |
| Vacuum generator | Blower 3Kw 400V/50hZ | |||

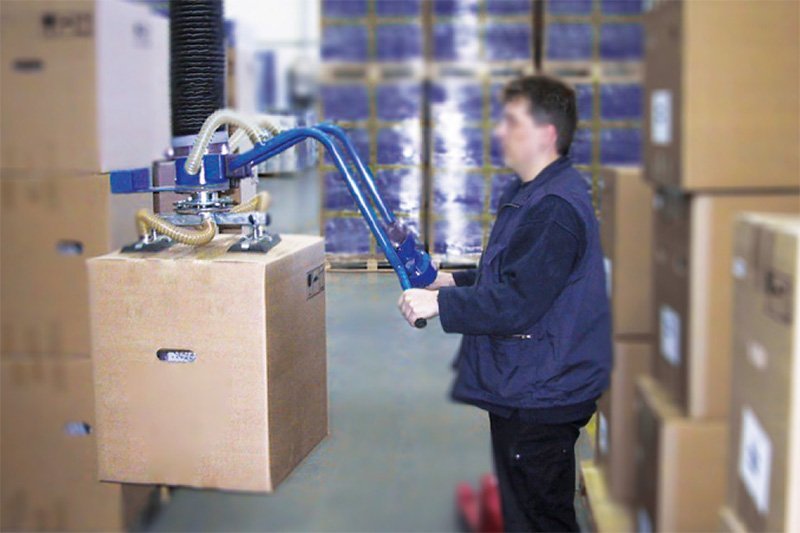

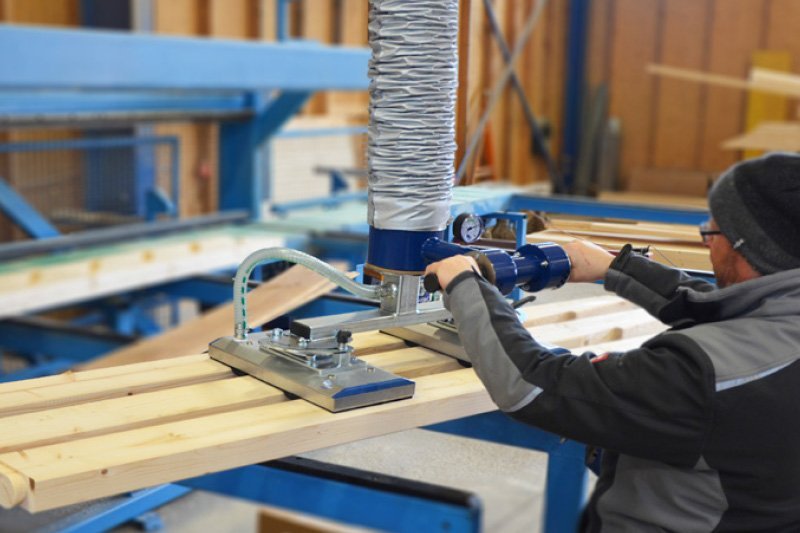

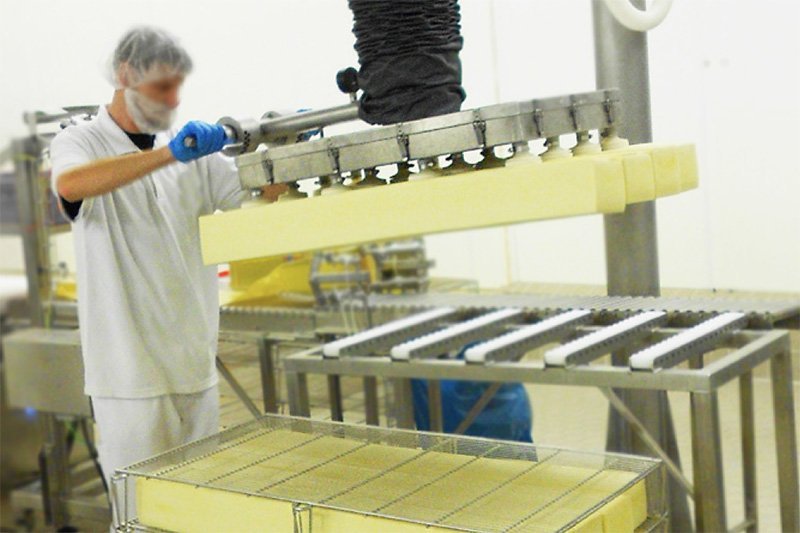

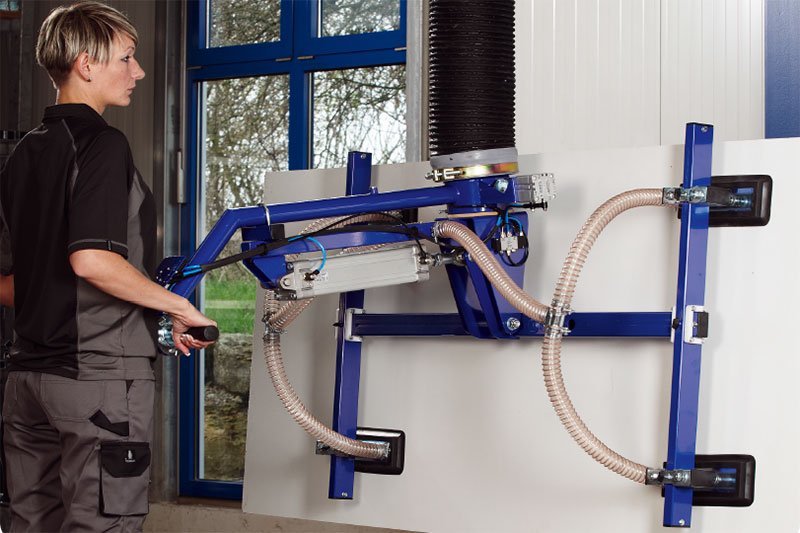

Vacuum Tube Lifter - examples of manipulator's application
