Name: Sorting cabin
Brand: SIGMA S.A.

Sorting cabin

Sorting cabins are an important element of the municipal waste sorting line process. They are installed as manual pre-selection stations (at the beginning of the line) or as manual fraction cleaning stations (at the end of the sorting process).

The cabins manufactured by SIGMA S.A. ensure optimal working conditions, meeting the highest health and safety standards. Thanks to many years of experience in designing and manufacturing of such turnkey facilities, we offer solutions representing excellent ergonomics, effective ventilation and air conditioning, which guarantee comfortable and efficient working environment for the staff.

ASK FOR THE PRODUCT

SPECIFICATION Gallery

CHARACTERISTICS

The sorting cabin complies with requirements and guidelines for workstations in accordance with health and safety regulations
Walls and roof made of layered coated steel sheet elements (colour according to the RAL palette) with 80/100/120/150 mm thick insulation filling
Window and door frames made of PVC profiles (colour according to the RAL palette), double or triple glazing
Thermally insulated floor with non-slip covering
Entrance and exit from the cabin via a system of stairs and platforms, as well as emergency ladders
Cabin equipped with at least four doors
Air conditioning and ventilation system meets the following requirements:
- air intake properly located, ensuring a supply of fresh air
- positive pressure inside the sorting cabin in relation to the surrounding hall
- each sorting workstation is ventilated separately with the possibility of individual switching off and adjustment of ventilation for a given workstation
- extraction above the sorting conveyor, along its entire length
- equipment: air conditioning ensuring x-fold air exchange per hour (the amount of air exchange adjusted to the type of fraction being sorted)
- heating system ensuring a minimum temperature of 18°C, air cooling provided by air conditioning during the operation in summer (max. temperature 25°C)
Sorting cabin equipped with industrial lighting system, 300 lux
Safety switch cables installed along the ventilation duct (on each side) or each conveyor station equipped with a separate safety switch (mushroom head button)
Cabin equipped with ‘momentary stop’ emergency switches (ability to stop and start the line)
Multi-station cabin equipped with chutes and side discharges
Discharge openings equipped with bottom closures, opened by a foot-operated or manual lever

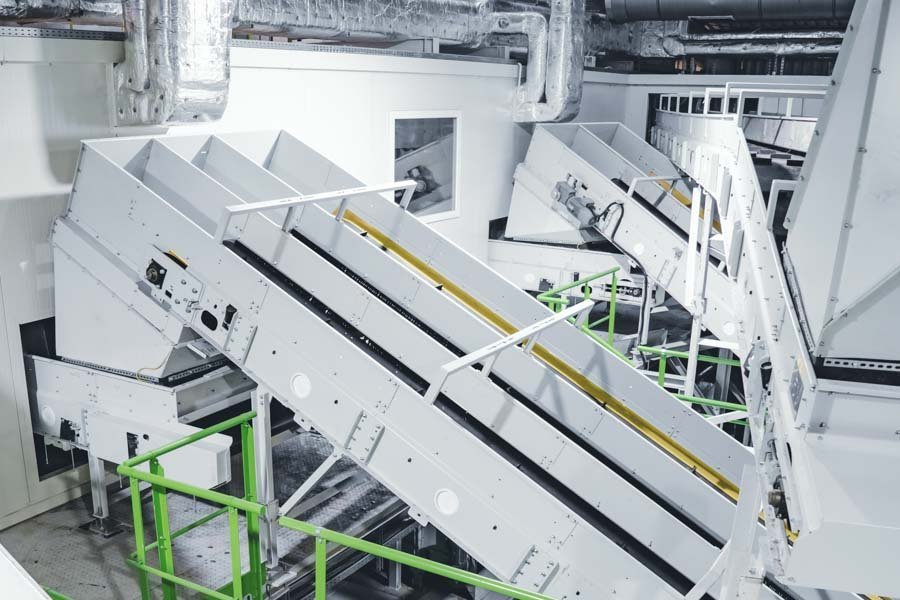

Sorting cabin

Sorting cabin - Pre-sorting of waste

Sorting cabin with elevated housing

manual waste refinement workstations

Sorting cabin
