Electromagnetic separator SEM 140-160

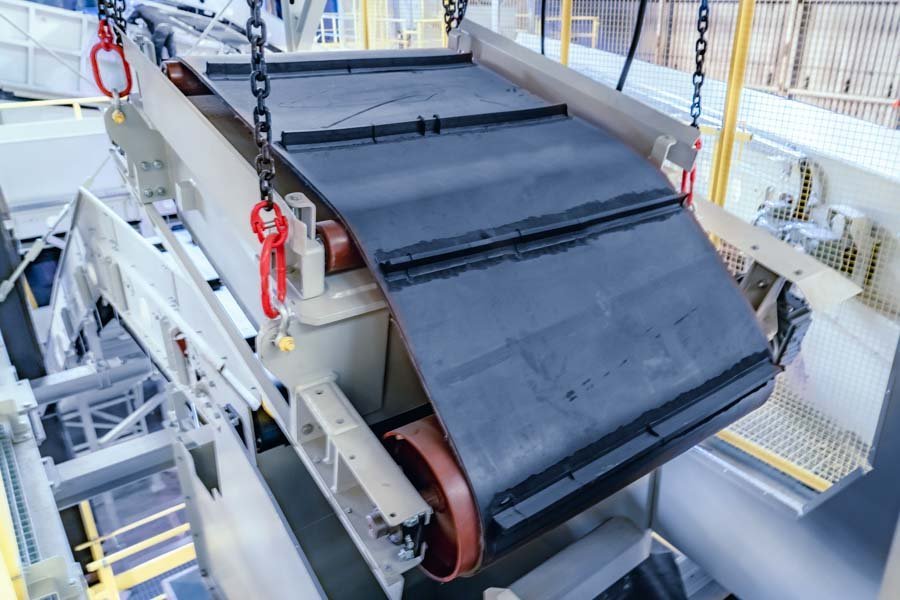

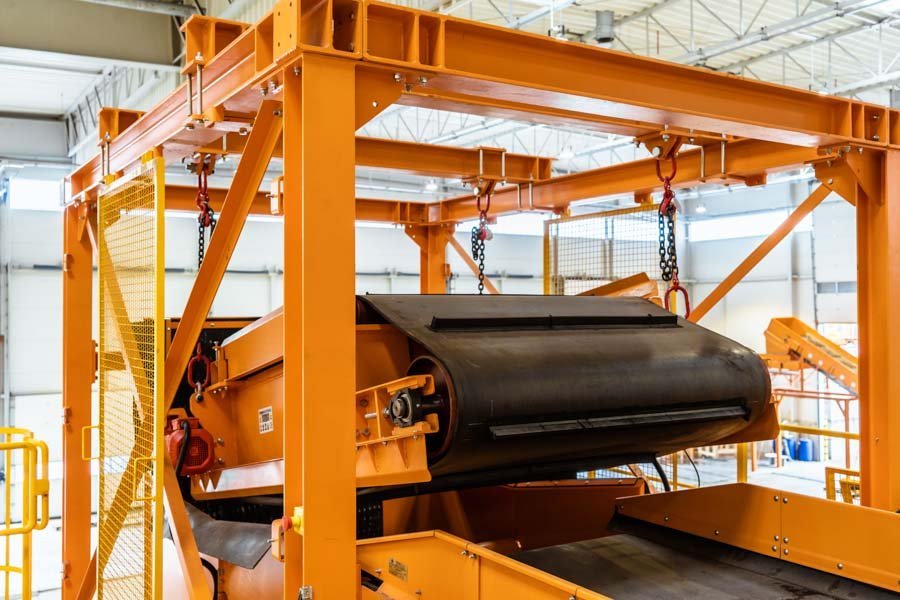

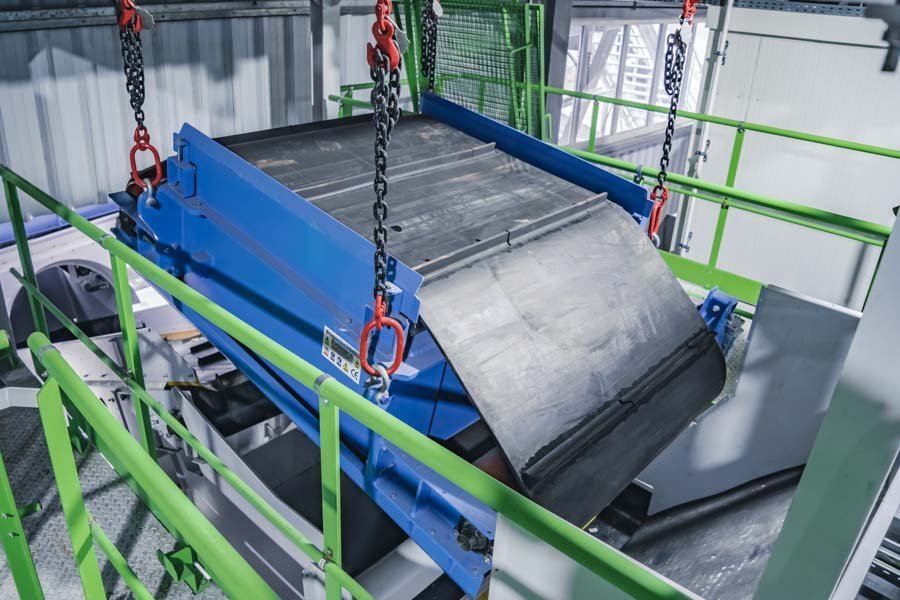

Electromagnetic separator SEM 140-160 is dynamic system designed to collect and separate ferrous and magnetic materials from input material (fraction) transported on belt conveyor. The principle of device’s operation is to place certain working area of belt conveyor under intensive magnetic field generated by electromagnet block. As result, steel materials transported on conveyor belt are captured (collected) in middle area of electromagnetic separator and moved by separator’s belt towards its end, where magnetic field generated by electromagnet is lower. When magnetic attraction disappears, steel material automatically falls on other conveyor or into the container.

SPECIFICATION
TECHNICAL CHARACTERISTICS
Size of electromagnet block [mm] length 1662; width 1360; height 505
Total electromagnet’s power demand [kW] 8
Power of belt’s drive responsiblefor collection of captured elements [kW] 8
Total weight of device [kg] ~3100
Maximum suspension height of separator above belt [mm] do 560

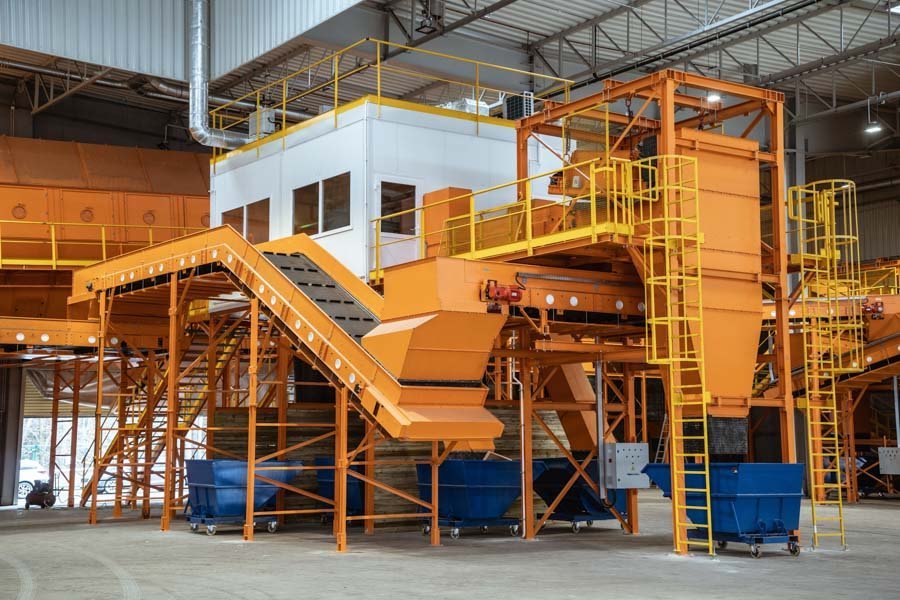

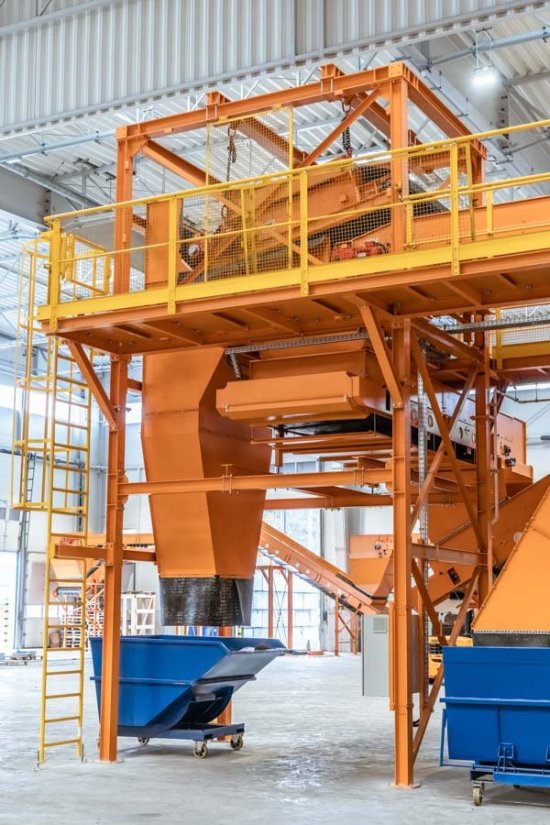

Possible options to install the separator:

LONGITUDINALLY over the chute, parallel to the direction of the conveyor belt run (configuration recommended for conveyors of max. belt width B = 1400mm)

TRANSVERSELY over conveyor belt route, perpendicular to the direction of the conveyor belt run, or in the same way above conveyor’s chute (configuration recommended for conveyors of max. belt width B = 1600 mm)

Technical parameters of our devices are being selected according to experience of SIGMA engineers and individual customer’s requirements.
