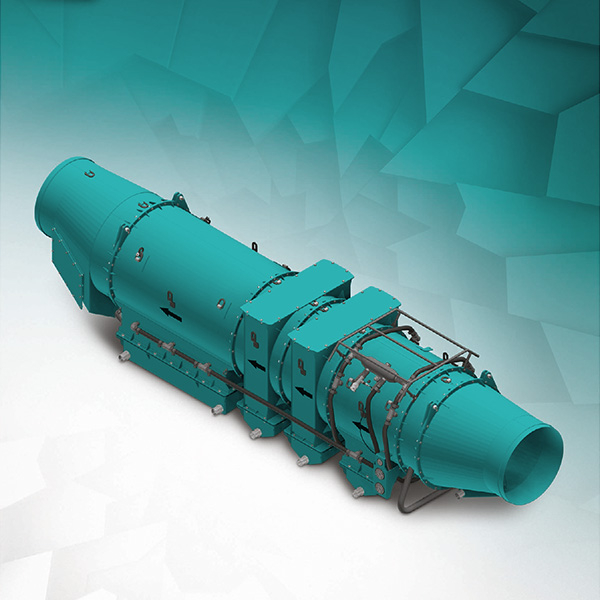

Wet type dust collector OMV-SERVAL
Wet type dust collector OMV-SERVAL is designed to separate dust grains from the air during transition through separation and spraying unit. The device assures high cleaning efficiency. Relatively small size of the device, as well as application of renewable filtration and cleaning utilities significantly reduces operating costs.
Wet type dust collector OMV-SERVAL is designed for either stationary and mobile operation. It is compatible with flexible and rigid air ducts. Wet type dust collector is able to cooperate with PDT-SIGMA and PTB-BOA belt feeders system through application of proper slings and container’s assembly.
TECHNICAL CHARACTERISTICS | |
Nominal capacity [m3/min.] | 360 |
Air flow resistance for nominal capacity [Pa] | 2400 |
Water jet pressure (per nozzle) [MPa] | 1,8 |
Dedusting efficiency [%] | ~98 |
Water recovery pressure [MPa] | 0,2 |
Weight of dedusting unit [kg] | 1320 |
Diameter of connected units [mm] | 650 - 800 |
Admissible inclination | |
going down [°] | do 20 |
going up [°] | do 8 |
